ChainMaster chain hoist system for Helmut List Halle in Graz

346

PreRigg_HLH_2_webSince the market launch of ChainMaster products in 1994, the Saxon-based medium-sized company has developed into one of the world’s leading manufacturers of hoist technology in the event industry and offers a comprehensive range of products for all requirements from set-up operations to complex scenic movements to complete automation of performances. National and international projects are accompanied individually from planning to implementation as well as user training. The worldwide network of ChainMaster Consulting Offices, commercial partners and trained service companies guarantees comprehensive after-sales service.

In August 2019, ChainMaster delivered a new chain hoist system to its long-standing Austrian sales partner A.T.C GmbH, based in Wulkaprodersdorf, Austria. A.T.C GmbH carried out the assembly and installation of the system on site in the Helmut List Halle in Graz.

For this project, ChainMaster supplied 38 VarioLifts 1000 kg with a two-fall design and a continuously variable speed up to 4.8 m/min and a maximum lifting height of 12 m. The drives are controlled by the XYZ control system, certified according to EN/IEC 61508 SIL3. The control system is currently designed for a maximum of 42 drives. The system is operated via a control panel with a 19″ touch screen, equipped with two travel levers with deadman switch. Two safety computers with self-monitoring and Internet access for remote maintenance operate in the background of the control system.

The ChainMaster XYZ Control System is ideal for creating complex motion sequences and is therefore a reliable interface between operator and stage drives. The straightforward user interface and the practical configuration of the functions enable simple and intuitive operation at the highest level of safety with constant access to the hoists integrated in the system.

To control the chain hoists, the Helmut List Halle is equipped with a control cabinet system of six units each for four drives and six units for three drives. Equipped with state-of-the-art closed-loop frequency converters, high-resolution displacement sensors and safe load evaluation enable programmable start and stop ramps, full torque at standstill over several minutes, direction changes without interruptions and make the ChainMaster Variolifts a hoist of the highest performance.

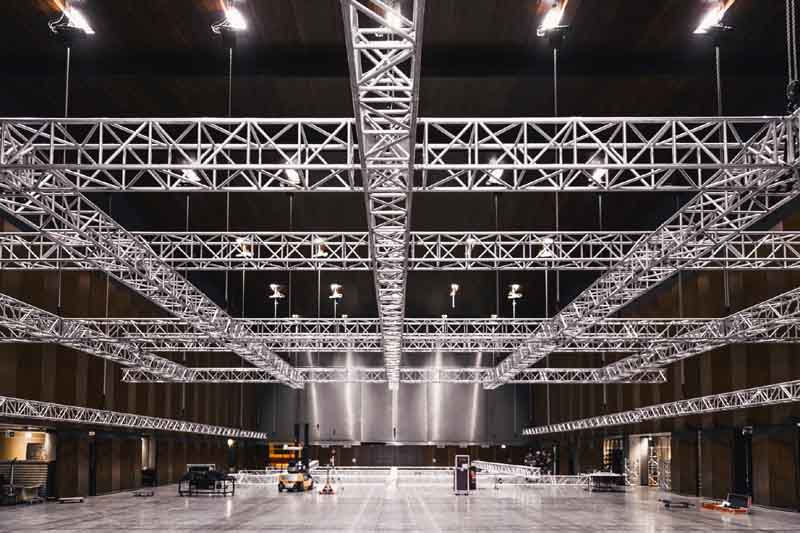

Caption: ChainMaster chain hoist system for Helmut List Halle in Graz (Photos: Stephan-Leitner-Photography)

About ChainMaster
ChainMaster Bühnentechnik GmbH is an autonomous subsidiary of LIFTKET Hoffmann GmbH since 1 August 2018. Founded in 1996, the company is headquartered in Eilenburg near Leipzig, Germany. It is specialized in electric chain hoists and chain hoist controllers for theaters, sports arenas, concerts, and other events and venues according to the German safety regulations BGV-D8, D8 Plus, and BGV-C1. ChainMaster produces partly and fully automated systems for worldwide use according to international regulations and safety standards. The comprehensive product portfolio includes a SIL3 control system compliant with IEC/EN 61508. A global network of consulting offices, sales partners, and trained service providers ensures direct customer support anytime and anywhere.
