Safety up to SIL3 – The ChainMaster C1 Ultra 750 kg (DGUV V17)

409

BGV-C1_750kg_Ultra_webThe ChainMaster C1 Ultra 750 kg is the latest chain hoist model in the ChainMaster Ultra series introduced in 2020. It complies with the SQ P2 standards newly released in 2018 and features a dynamic safety factor. The C1 Ultra is based on the housing of the D8plus Ultra 1000 kg and, with a tare weight of only 40 kg and housing dimensions of 600x270x340 mm, offers the optimal balance between tare weight and load capacity

Designed specifically for everyday setup in fixed installations, it lifts loads at 4m/min with a duty cycle of 40%. The standard equipment for the ChainMaster ProTouch Control System CM-880 includes an incremental encoder for positioning, a 4-track geared limit switch for operating and emergency end position, as well as a load measuring shackle that reduces installation height compared to conventional load-measuring cells.

Depending on the project specification, two redundant absolute encoders can also be installed to achieve a SIL3 safety level corresponding to EN 61508. The high-end equipment would then also include two maintenance-free, independent low-noise brakes with brake gap monitoring and a digital temperature sensor. The standard protection level of the housing is IP55 and can be optionally upgraded to IP66.

ChainMaster’s highly experienced staff are available to support planning offices and operators worldwide from the very first step right through to commissioning and user training.

ChainMaster Bühnentechnik GmbH
Since the market launch of ChainMaster products in 1994, the medium-sized, Saxon-based company has developed into one of the world’s leading manufacturers of hoist technology in the event industry and offers a comprehensive range of products for all requirements from set-up operations to complex scenic movements to complete automation of performances.
National and international projects are accompanied individually from planning to implementation through to user training. The worldwide network of ChainMaster Consulting Offices, commercial partners and trained service companies guarantees comprehensive after-sales service. ChainMaster now exports to 55 countries worldwide. The company’s references include projects such as the new Elbe Philharmonic Hall in Hamburg, the Louvre in Lens, the Stockholm Opera, the Almaty Ice Arena, the Kremlin State Palace, the 2014 Olympic Games in Sochi and the Helmut List Hall in Graz.

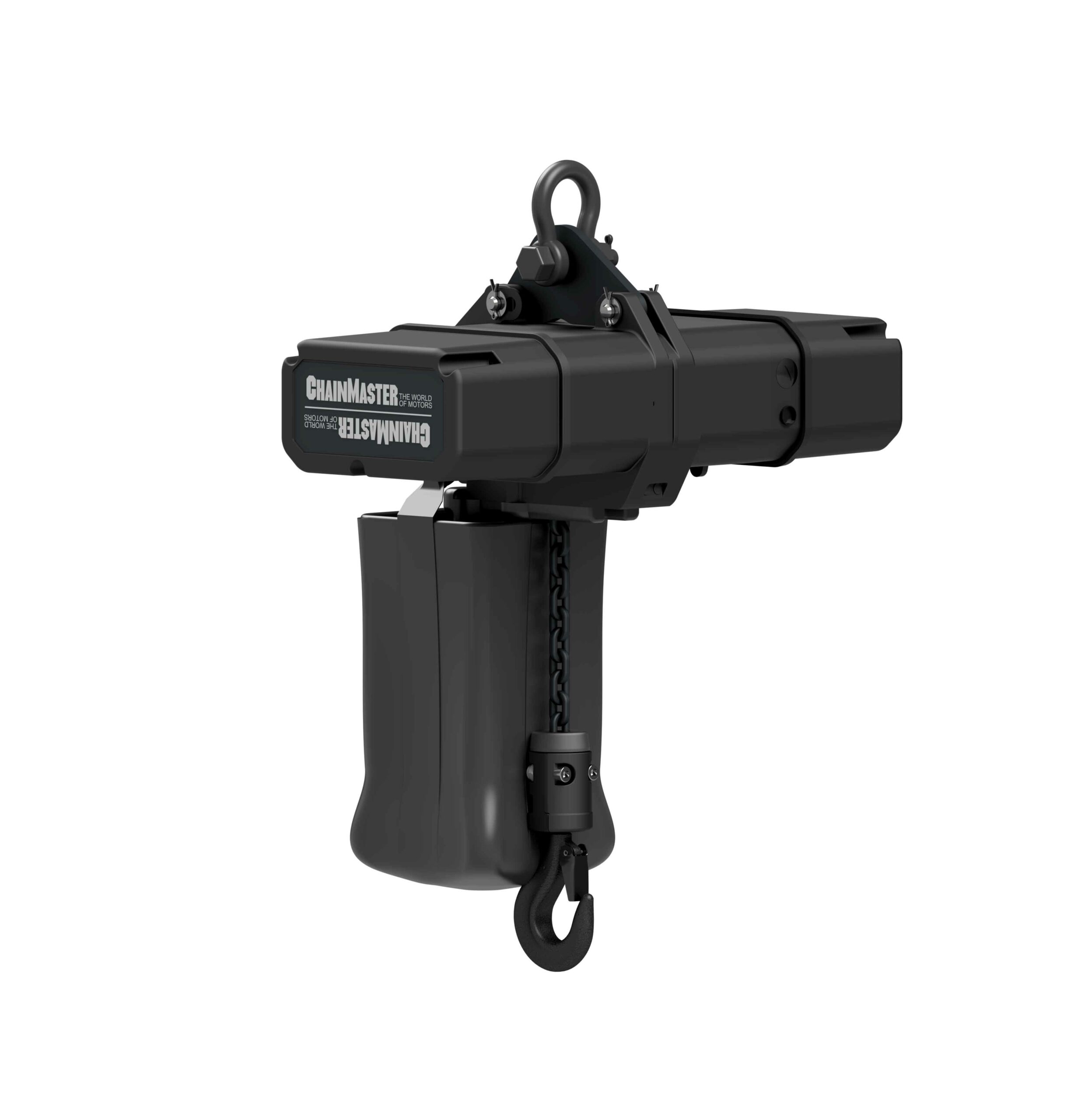

Photos: C1 Ultra 750 kg (ChainMaster)
