Movecat presents the PROStage+ D8-PLUS hoist in the 1000 class with integrated operating hours counter


Movecat_PROstage_180522_Haken_schwrz_webSince this year’s Prolight + Sound, the Movecat portfolio has included a PROStage+ chain  hoist also in the 1,000 class. With it, the D8 Plus IGVW SQP2-10:2018 electric chain hoist segment of the market has gained a model with an outstanding unladen weight to load capacity ratio of 60.8 kg : 1.000 kg, which furthermore, with a noise level in operation of only <60 dB/A / 1 m, is also extremely quiet.
A new feature is the D-Type special chain, which boasts an 8% greater load-bearing capacity than standard chains, and despite its exceptionally compact dimensions achieves a static chain safety factor of 8:1.
A further industry innovation is the PROStage+’s integrated, digital operating hours counter, which is capable of keeping track of operating hours automatically during operation. The user can read without difficulty from the battery-powered LC display –  even in idle mode – not only the number of elapsed operating hours but also the remaining service life for different load collectives.

The new PROStage+ 1000 D8 Plus has an unladen weight of 60.8 kg and is capable of moving a 1 metric ton load at a speed of 4 m/min. The PROStage+ 1000 offers hoisting heights of 18 or 24 metres. Optionally, the hoisting height can be extended to up to 60 metres.

The hoist can be used in climbing or standard installation positions without conversion. It is equipped with maintenance-free brakes, an integrated operating hours counter, a high-tensile Movecat D-Type Special Chain and a flame-resistant textile chain bag. 400 V AC direct control (DV control) is currently supported with a low-voltage control version (LV Control) in preparation.

Thanks to its modular design, it can be optionally equipped with LME load-measuring eyebolts for integrated overload monitoring, gear limit switches, incremental or absolute encoders, and temperature monitoring.

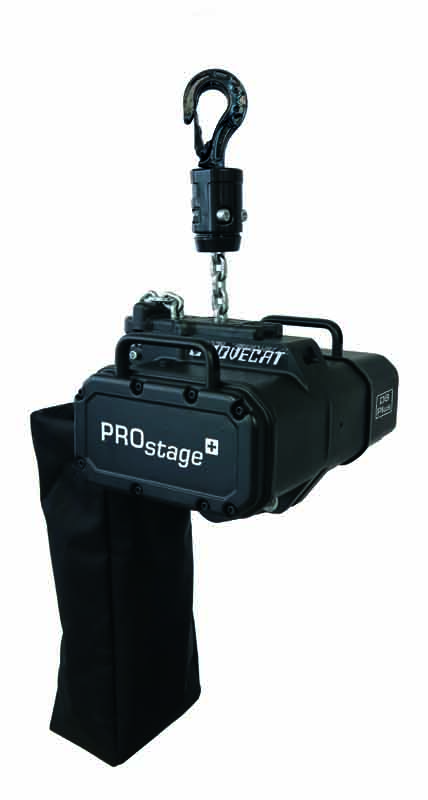

Caption: PROStage+ 1000 D8 Plus (Photo: Movecat)

Movecat GmbH
Movecat is currently the only manufacturer of kinetic equipment for the stage anywhere in the world capable of offering practice-tested, certified and genuinely available integrated systems compliant with BGV C1 and SIL3 – these consisting of chain hoists, trolleys, band hoists, winches, turntables, load-measurement systems and networks. The company was founded in 1986 by Andrew and Thomas Abele. The products are developed and manufactured in Germany. Movecat’s kinetic solutions are used in high profile shows, tours and TV productions not only in Germany but throughout the world. The company has garnered a host of distinctions in recent years including the TOP 100 Prize, the German Design Award, the P.I.P.A. Award, the Industry Prize and the VR Prize for Innovation.

Movecat GmbH
Rudolf-Diesel-Straße 21
71154 Nufringen
Phone: +49 (0) 70 32 / 98 51-0
Contact partner: Florian Pfeiffer
